Pomodoro with 1.3 inch OLED, Knob Encoder, Buttons
This project showcases a simple yet effective Pomodoro timer built with an ESP32 and an integrated 1.3 OLED display with knob and buttons. It can be used for more interesting projects as well
🧰 Hardware Components
- A 1.3-inch SH1106 OLED display connected via I2C (SDA=GPIO19, SCL=GPIO23)
- An EC11 rotary encoder (A=GPIO5, B=GPIO17, Push=GPIO18)
- A Confirm button on GPIO22 (functions the same as the rotary push button)
- A Back button on GPIO16 (used to exit countdown and return to main menu)
- Rechargeable Battery
The pinout is as follow:
| OLED Pin | GPIO | Remark |
|---|---|---|
| Confirm | 22 | Panel button |
| SDA | 19 | OLED |
| SCL | 23 | OLED |
| Push | 18 | Encoder button |
| TRA | 5 | EC11 Encoder |
| TRB | 17 | EC11 Encoder |
| Back | 16 | Panel button |

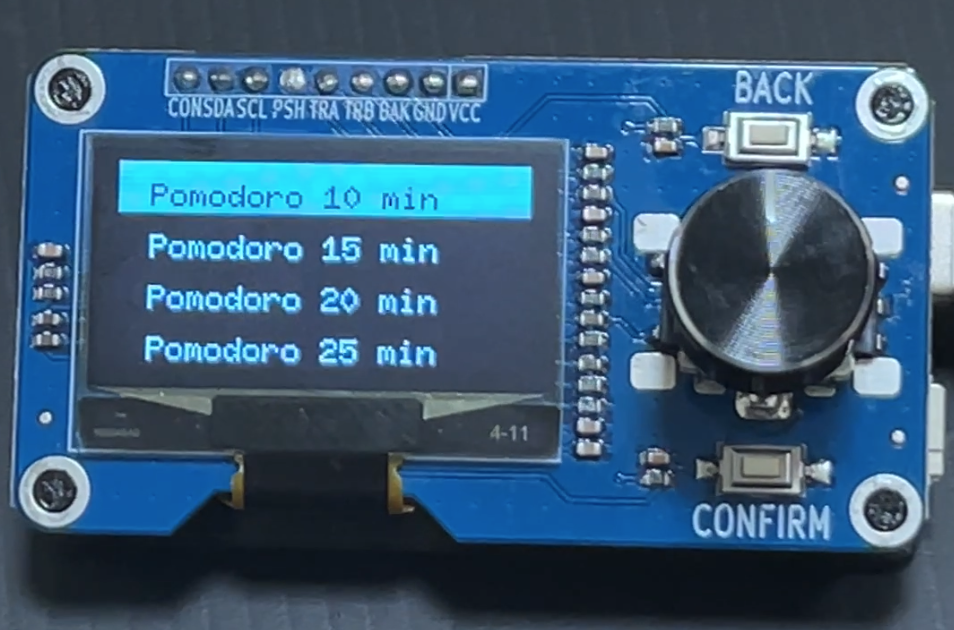

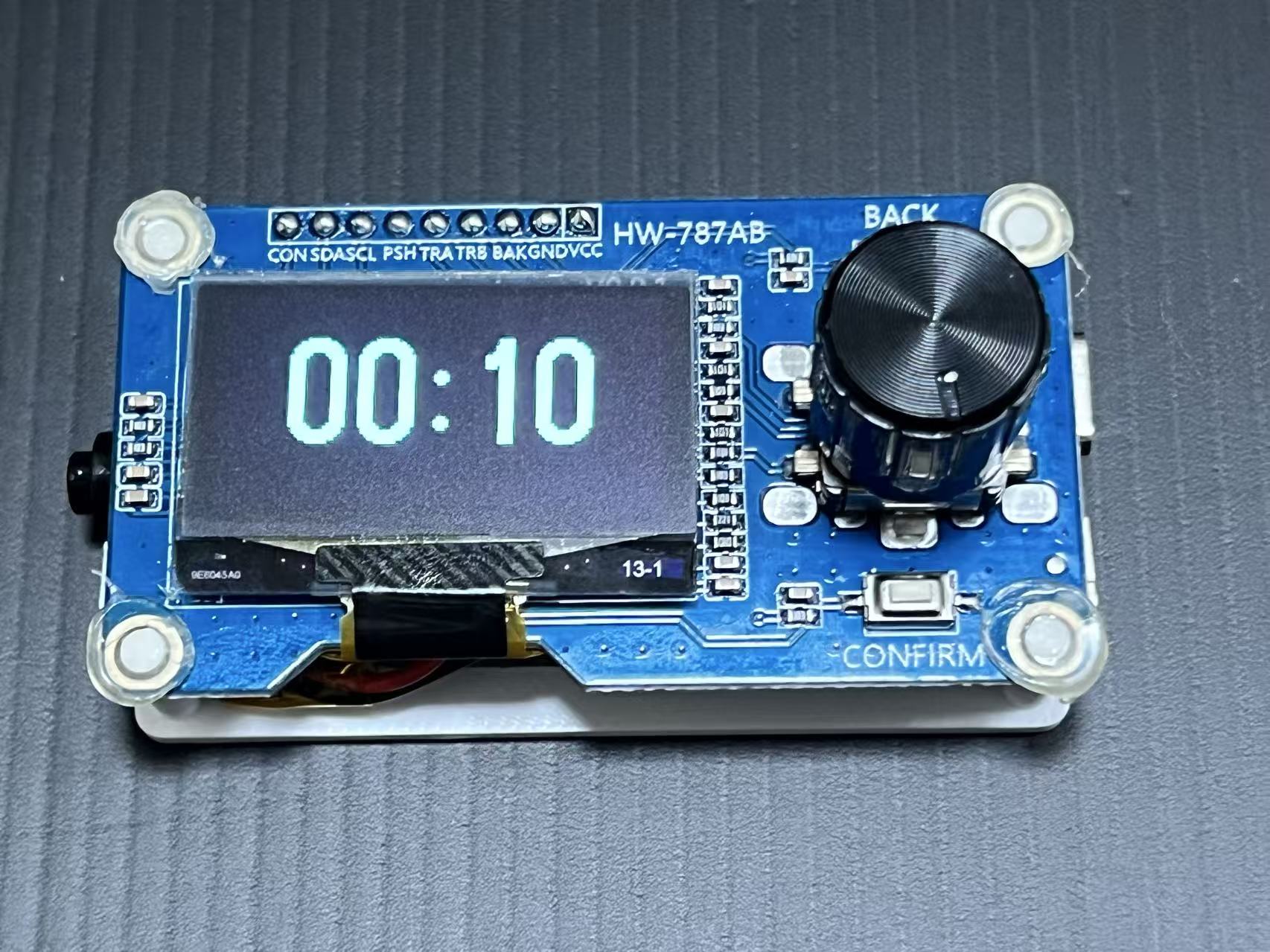

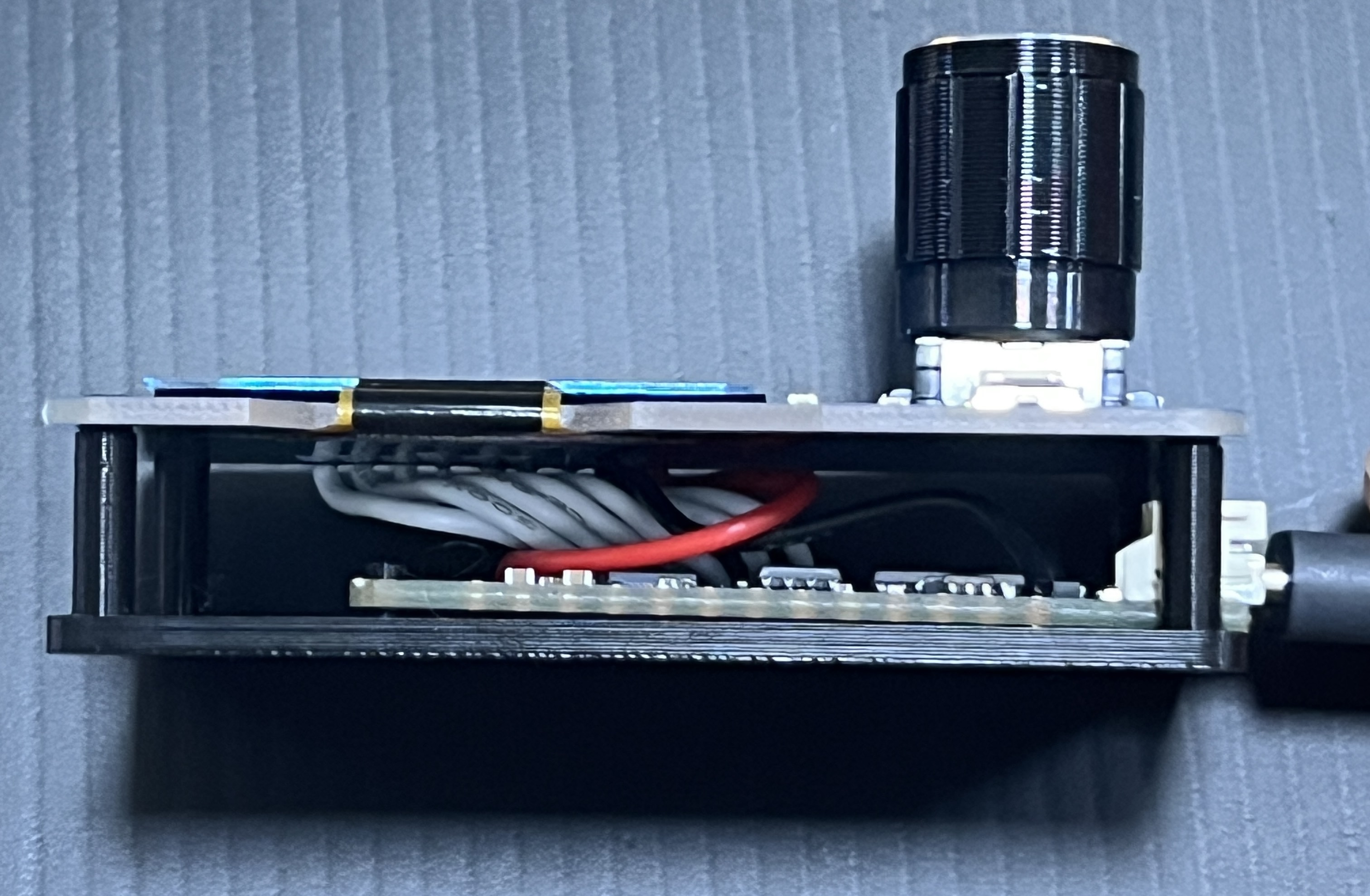

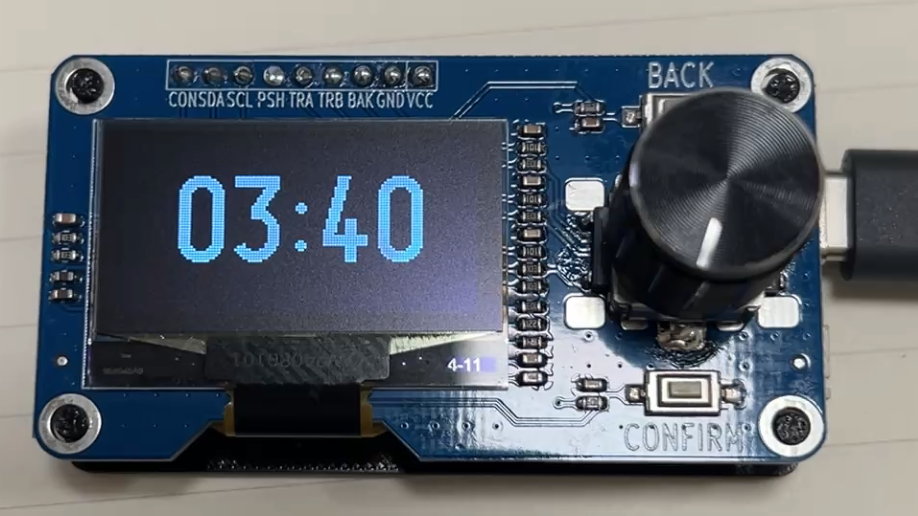

The assembled timer from different views:
GPT Prompt for the Code: Generate Arduino C++ code for an ESP32-based Pomodoro timer using the following hardware setup:
- A 1.3-inch SH1106 OLED display connected via I2C (SDA=GPIO19, SCL=GPIO23)
- An EC11 rotary encoder (A=GPIO5, B=GPIO17, Push=GPIO18)
- A Confirm button on GPIO22 (functions the same as the rotary push button)
- A Back button on GPIO16 (used to exit countdown and return to main menu)
Requirements: 1. Display a scrollable menu of five options: "Pomodoro 10 min", "Pomodoro 15 min", "Pomodoro 20 min", "Pomodoro 25 min", and "Info". 2. Show 4 menu items on screen at a time, and highlight the currently selected one. 3. Use the rotary encoder to scroll through the menu, and use either the rotary push button or the Confirm button to start a Pomodoro countdown. 4. During countdown, display the remaining time in mm:ss format in large centered digits. 5. Pressing the Back button at any time during the countdown returns to the main menu. 6. Selecting "Info" displays author information for 3 seconds before returning to the menu. 7. Do not include any buzzer or sound feedback. 8. Use the U8g2 library and appropriate fonts for the OLED screen.
🧠 Key Code Snippet
Click to expand full code
#include <U8g2lib.h>
#include <Wire.h>
// Screen（SH1106 OLED）
#define OLED_SDA 19
#define OLED_SCL 23
// EC11 encoder
#define ROTARY_A 5
#define ROTARY_B 17
#define ROTARY_PUSH 18
// button
#define BTN_CONFIRM 22
#define BTN_BACK 16
// buzzer
#define BUZZER_PIN 21
// manu
const int menuCount = 5;
const char* menuItems[menuCount] = {
"Pomodoro 10 min",
"Pomodoro 15 min",
"Pomodoro 20 min",
"Pomodoro 25 min",
"Info"
};
// variable status
int menuIndex = 1;
int lastCLK = HIGH;
bool inCountdown = false;
U8G2_SH1106_128X64_NONAME_F_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE);
// ====== SETUP ======
void setup() {
pinMode(ROTARY_A, INPUT_PULLUP);
pinMode(ROTARY_B, INPUT_PULLUP);
pinMode(ROTARY_PUSH, INPUT_PULLUP);
pinMode(BTN_CONFIRM, INPUT_PULLUP);
pinMode(BTN_BACK, INPUT_PULLUP);
pinMode(BUZZER_PIN, OUTPUT);
//digitalWrite(BUZZER_PIN, HIGH); // 不响（低电平才响）
Wire.begin(OLED_SDA, OLED_SCL);
u8g2.begin();
drawMenu();
}
// ====== LOOP ======
void loop() {
if (inCountdown) {
// 倒计时中仅监听退出
if (digitalRead(BTN_BACK) == LOW) {
delay(200);
inCountdown = false;
drawMenu();
}
return;
}
handleRotary();
// 开始倒计时（旋钮按下或Confirm）
if (digitalRead(ROTARY_PUSH) == LOW || digitalRead(BTN_CONFIRM) == LOW) {
delay(200);
handleSelection(menuIndex);
drawMenu();
}
// Back 返回主菜单
if (digitalRead(BTN_BACK) == LOW) {
delay(200);
drawMenu();
}
}
// ====== HANDLE ROTARY ======
void handleRotary() {
int currentCLK = digitalRead(ROTARY_A);
if (currentCLK != lastCLK && currentCLK == LOW) {
if (digitalRead(ROTARY_B) != currentCLK) {
menuIndex++;
} else {
menuIndex--;
}
if (menuIndex < 1) menuIndex = 1;
if (menuIndex > menuCount) menuIndex = menuCount;
drawMenu();
}
lastCLK = currentCLK;
}
// ====== DRAW MENU ======
void drawMenu() {
u8g2.clearBuffer();
u8g2.setFont(u8g2_font_6x10_tr);
const int visibleCount = 4;
int startIdx = menuIndex - 1;
if (startIdx < 1) startIdx = 1;
if (startIdx > menuCount - visibleCount + 1)
startIdx = menuCount - visibleCount + 1;
for (int i = 0; i < visibleCount; i++) {
int idx = startIdx + i;
if (idx > menuCount) break;
int y = i * 16 + 14;
if (idx == menuIndex) {
u8g2.drawBox(0, i * 16, 128, 16);
u8g2.setDrawColor(0);
} else {
u8g2.setDrawColor(1);
}
u8g2.setCursor(10, y);
u8g2.print(menuItems[idx - 1]);
}
u8g2.setDrawColor(1);
u8g2.sendBuffer();
}
// ====== HANDLE SELECTION ======
void handleSelection(int index) {
if (index >= 1 && index <= 4) {
int minutes[] = {10, 15, 20, 25};
int seconds = minutes[index - 1] * 60;
inCountdown = true;
for (int i = seconds; i >= 0 && inCountdown; i--) {
u8g2.clearBuffer();
u8g2.setFont(u8g2_font_logisoso32_tr);
int min = i / 60;
int sec = i % 60;
char timeStr[6];
sprintf(timeStr, "%02d:%02d", min, sec);
int textWidth = u8g2.getStrWidth(timeStr);
u8g2.setCursor((128 - textWidth) / 2, 45);
u8g2.print(timeStr);
u8g2.sendBuffer();
delay(1000);
}
if (inCountdown) {
flashDone();
beep3Times();
}
inCountdown = false;
} else if (index == 5) {
u8g2.clearBuffer();
u8g2.setFont(u8g2_font_6x10_tr);
u8g2.setCursor(10, 25);
u8g2.print("Made by Miao");
u8g2.setCursor(10, 40);
u8g2.print("ESP32 Pomodoro Timer");
u8g2.sendBuffer();
delay(3000);
}
}
// ====== BEEP FUNCTION ======
void beep3Times() {
for (int i = 0; i < 3; i++) {
digitalWrite(BUZZER_PIN, LOW);
delay(200);
digitalWrite(BUZZER_PIN, HIGH);
delay(200);
}
}
// ====== FLASH DONE ======
void flashDone() {
for (int i = 0; i < 4; i++) {
u8g2.clearBuffer();
u8g2.setFont(u8g2_font_ncenB14_tr);
const char* text = "Done!";
int w = u8g2.getStrWidth(text);
u8g2.setCursor((128 - w) / 2, 40);
u8g2.setDrawColor(1);
u8g2.print(text);
u8g2.sendBuffer();
delay(300);
u8g2.clearBuffer();
u8g2.drawBox(0, 0, 128, 64);
u8g2.setDrawColor(0);
u8g2.setCursor((128 - w) / 2, 40);
u8g2.print(text);
u8g2.sendBuffer();
delay(300);
}
u8g2.setDrawColor(1);
}
